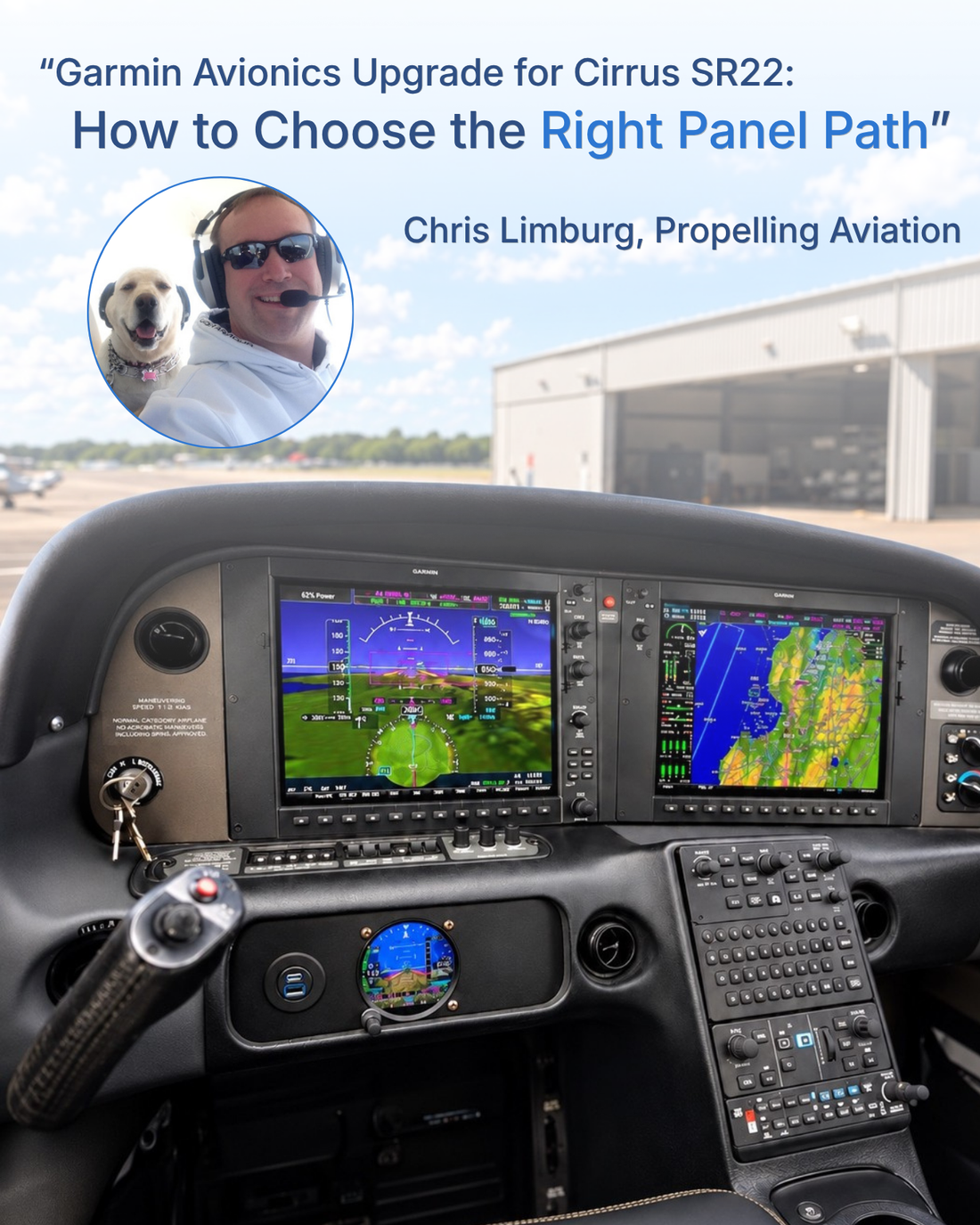

A Garmin avionics upgrade for a Cirrus SR22 should start with the aircraft you own, not the newest equipment on the market. The right upgrade path depends on your Cirrus generation, the panel already installed, the way you fly, and whether you want a full Cirrus SR22 panel upgrade or a phased plan that builds over time.
This article walks through the main Cirrus avionics upgrade options: GTN Xi navigators, G500 TXi displays, GFC 500 autopilot upgrades, GI 275 instruments, and the Perspective+ path for qualifying aircraft. The goal is not to chase the newest screen. The goal is to build a panel that fits your SR22, your mission, and your willingness to learn the system well.
How to Plan a Garmin Avionics Upgrade for Your Cirrus SR22
The first question should not be, “Which Garmin box do you want?”
It should be, “What is the aircraft, and what problem are we solving?”
A VFR SR22 used for regional trips does not need the same panel strategy as an IFR aircraft used for frequent business travel. An early SR22 with a legacy Avidyne panel does not follow the same upgrade path as a later aircraft with original Cirrus Perspective. A pilot trying to keep the aircraft long-term should also think differently from an owner preparing the airplane for resale.
Before choosing equipment, work through the basics:
- What generation is the aircraft?
- Is it a pre-Perspective SR22 or an original Perspective-equipped aircraft?
- Are you flying hard IFR, occasional IFR, or mostly VFR?
- Is the current autopilot reliable and supported?
- Are the navigator, audio panel, transponder, and displays working together cleanly?
- Are you trying to complete a full Cirrus SR22 panel upgrade, or phase the work over time?
Those answers determine the panel direction. A good Garmin installation is not just a stack of equipment. It is a system.
Cirrus SR22 Avionics Upgrade Options by Generation
Cirrus generation matters because the starting panel matters.
For planning purposes, divide SR22 aircraft into two broad groups.
Pre-Perspective aircraft — including many G1/G2 aircraft and some earlier G3 configurations — often involve legacy Avidyne-based panels, older navigators, aging autopilots, and a more open retrofit path. These aircraft are usually candidates for GTN Xi navigators, G500 TXi displays, GI 275 instruments, GFC 500 autopilot upgrades, where eligible, or a phased combination of those products.
G3 and G5 aircraft equipped with the original Cirrus Perspective system may have a different path. For those aircraft, Garmin’s Perspective+ upgrade may be the more relevant discussion than a conventional retrofit stack, depending on eligibility, budget, and owner goals. Garmin states the Perspective+ upgrade is available for SR20, SR22, and SR22T G3 and G5 aircraft equipped with the original Cirrus Perspective.
Do not rely on generation labels alone. Confirm the installed avionics, serial number applicability, autopilot configuration, and available STCs before committing to a direction.
GTN 650Xi vs GTN 750Xi for a Cirrus SR22
The GTN Xi decision is usually most relevant for pre-Perspective Cirrus aircraft or aircraft with older retrofit navigators.
The GTN 650Xi makes sense when panel space is limited, budget discipline matters, or the aircraft already has another strong display source. It gives you modern GPS/NAV/COMM capability in a smaller footprint.
The GTN 750Xi makes sense when the navigator will be the primary point of interaction in the panel. The larger screen is useful for flight planning, procedure loading, traffic, weather, and map work. For pilots who manage a lot from the navigator, the larger interface can reduce head-down friction.
The tradeoff is panel space, installation complexity, and cost. A 750Xi is not automatically the better choice. In some SR22 panels, a 650Xi paired with the right flight display is a cleaner plan.
For G1/G2 legacy panels and other pre-Perspective aircraft, GTN Xi often becomes the center of a broader Garmin retrofit. For original Perspective-equipped G3/G5 aircraft, the conversation often starts with Perspective+ before considering any standalone retrofit path.
Garmin G500 TXi Upgrade for Legacy Cirrus Panels
A Garmin G500 TXi upgrade is most relevant for pre-Perspective SR22 owners who want a modern flight display environment without moving into a factory-style Perspective upgrade path.
The G500 TXi is for the owner who wants primary flight information, navigation data, traffic, weather, and engine information presented in a more integrated way. It is especially useful when the aircraft has aging mechanical instruments, older displays, or a panel layout that no longer fits the way the airplane is flown.
It usually pairs with GTN Xi navigators, compatible transponders, audio equipment, engine indication options, and autopilot interfaces. The tradeoff is that TXi work can become a broader panel project quickly. Once you open the panel, you may be dealing with old wiring, legacy interfaces, instrument layout constraints, and decisions about what to remove versus what to keep.
For many pre-Perspective SR22 owners, TXi is a strong long-term modernization path. For original Perspective-equipped G3/G5 owners, Perspective+ needs to be considered before planning a TXi-style retrofit.
Garmin GFC 500 Autopilot Upgrade for Cirrus SR22
The Garmin GFC 500 autopilot discussion is mainly for SR22 owners with older autopilot systems that are becoming expensive, unreliable, or difficult to support.
This upgrade is for an owner who wants a more modern digital autopilot and is already thinking about the aircraft as a long-term platform. It makes the most sense when the rest of the panel plan supports it: navigator, displays, annunciation, electrical health, and pilot workflow.
It pairs naturally with Garmin navigators and compatible display equipment. The important point is that an autopilot is not a convenience accessory. It is a flight control system. The installation has to be planned around approval, servos, wiring, mode awareness, and the pilot’s ability to understand what the system is doing.
The tradeoff is cost, downtime, and training. A modern autopilot can reduce workload, but only if the pilot is disciplined enough to learn the modes, limitations, disconnect logic, and failure behavior.
For pre-Perspective SR22 aircraft, GFC 500 can be part of a serious panel modernization plan, if eligible. For Perspective-equipped G3/G5 aircraft, confirm the existing autopilot architecture and upgrade eligibility before assuming GFC 500 is the right path.
Garmin GI 275 for Cirrus SR22 Backup and Phased Upgrades
The Garmin GI 275 is often a practical tool in a phased Cirrus upgrade strategy. It can serve in several roles depending on configuration and approval, including as an electronic flight instrument, backup instrument, HSI, CDI, or engine indication solution.
It is for the owner who needs to address aging instruments, improve redundancy, or create a bridge toward a larger panel upgrade. In some aircraft, it can help remove weak links without committing to a full-panel project immediately.
It pairs with Garmin navigators, display upgrades, and other panel modernization work depending on the aircraft and configuration. The practical value is flexibility.
The tradeoff is scope control. A GI 275 can be a smart step, but it should not be installed as a one-off decision with no future plan. Placement, interfaces, backup roles, and later display upgrades should be considered before the first cut is made.
For pre-Perspective Cirrus aircraft, GI 275 can be useful in staged upgrades. For original Perspective aircraft, its role depends on the existing panel architecture and the broader Perspective/Perspective+ path.
Cirrus Perspective+ Upgrade for G3 and G5 SR22 Aircraft
For many G3 and G5 SR22 owners with original Cirrus Perspective, Perspective+ is the most important upgrade path to evaluate before considering a piecemeal retrofit.
This option is for owners who like the integrated Cirrus/Garmin flight deck concept but want newer capability, improved display performance, and a supported upgrade path. Garmin states that the Perspective+ upgrade applies to SR20, SR22, and SR22T G3 and G5 aircraft equipped with the original Cirrus Perspective system.
It makes sense when the aircraft is already built around Perspective, and the owner wants to preserve that integrated architecture rather than rebuild the panel around standalone retrofit components.
The tradeoff is eligibility and path dependency. This is not the same decision as installing GTN Xi and TXi equipment in a legacy panel. It needs to be evaluated based on aircraft configuration, approved upgrade path, availability, and who is authorized to perform the work.
For original Perspective SR22 owners, this should be one of the first conversations. For pre-Perspective owners, it is generally not the same upgrade path.
Phased Cirrus SR22 Panel Upgrade: When to Upgrade in Stages
A phased Cirrus SR22 panel upgrade can make sense, but only if the phases are designed before the work starts.
For a legacy SR22, one owner may start with a WAAS navigator and audio panel, then add a flight display later, then address the autopilot. Another may start by removing aging mechanical instruments and installing electronic backups before planning the larger panel.
That approach can work. The risk is doing phase one in a way that has to be undone in phase two.
A phased plan should answer these questions before installation begins:
- Where will the final navigator, display, audio panel, and backup instruments live?
- Will the wiring support the next phase?
- Will the circuit protection and electrical load still make sense later?
- Are antennas, interfaces, and annunciation being planned once or repeatedly?
- Is the owner building toward a known end-state, or just reacting to the next failure?
Phasing is not the same as improvising. A phased Garmin avionics upgrade should still have a final panel strategy.
What Hides Behind Older Cirrus SR22 Panels
Older Cirrus panels can look clean from the pilot seat and still hide problems behind the panel.
The common issues are usually the result of age, multiple prior modifications, older wiring practices, unsupported components, undocumented changes, and equipment that still functions but no longer belongs in the aircraft’s future.
This matters because the panel plan and the installation quote are only as good as the assumptions behind them.
On a legacy SR22, Chris typically wants to understand what has been added, removed, patched, retained, and documented throughout the aircraft's life. That review affects the upgrade path. Sometimes the right answer is not “add more equipment.” Sometimes the right answer is to clean up the foundation before building the new panel around it.
That is also why a conversation before scheduling the aircraft is useful. The goal is to identify the likely surprises early, not after the airplane is opened up.
How Much Garmin Capability Should You Install in a Cirrus SR22?
Do not install more capability than you are willing to learn.
Modern Garmin avionics are powerful. They can manage navigation, approaches, traffic, weather, engine data, autopilot coupling, flight plan transfer, and more. But capability only helps if the pilot understands the system.
A pilot who knows a simpler panel well is safer than a pilot who is overwhelmed by an expensive panel they barely use.
That does not mean you should avoid advanced equipment. It means training and transition time should be part of the upgrade plan. After the installation, you need time on the ground, time in the manual, and time in the airplane with a clear understanding of how the system behaves.
The goal is not the most impressive panel photo. The goal is a Cirrus panel you can operate confidently in the conditions you actually fly.
Before You Commit to a Garmin Avionics Upgrade for Your Cirrus SR22
A Garmin avionics upgrade for a Cirrus SR22 should start with the aircraft generation, the installed panel, and the mission.
For pre-Perspective aircraft, the right path may involve GTN Xi, G500 TXi, GI 275, GFC 500, or a phased combination. For G3/G5 aircraft with original Perspective, the Perspective+ path needs to be considered early. Those are different conversations.
Before you commit to a panel direction, it is worth having a conversation.
Chris reviews the aircraft, the generation, the existing panel, and the mission together so you can understand your Cirrus avionics upgrade options before spending money twice.
